Ship Engine Parts

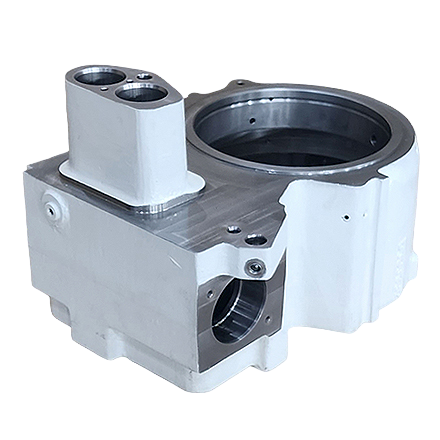

WATER JACKET
-
Model
L21/31, L27/38
-
Product Name
WATER JACKET
-
Role of Parts
Parts that circulates the coolant to keep the cylinder at an appropriate temperature
-
Application area
MAN ENGINE
-
Size(mm)
W 482 x L 278 x H246 ~ W 866 x L 487 x H 365
-
Weight(kg)
90 ~ 100
-
Precision(mm)
0.02 ~ 0.3
STEP RING
-
Model
L21/31, L27/38
-
Product Name
STEP RING
-
Role of Parts
Parts that protects the engine cylinder by fixed to the top of the engine cylinder and assembled inside the engine cylinder
-
Application area
MAN ENGINE
-
Size(mm)
W 170 x L 170 x H 20 ~ W 280 x L 280 x H 35
-
Weight(kg)
0.9 ~ 2.7
-
Precision(mm)
0.015 ~ 0.05

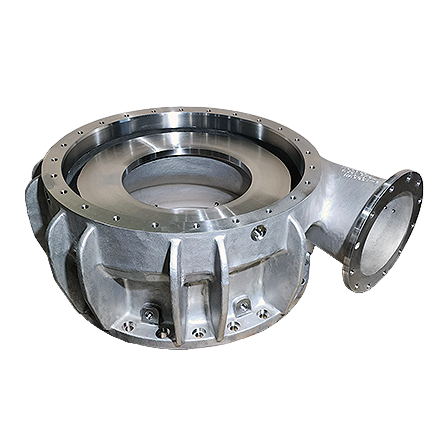

VOLUTE CASING
-
Model
ETB40
-
Product Name
VOLUTE CASING
-
Role of Parts
Parts responsible for converting velocity energy into pressure energy
-
Application area
MAN TYPE EGR
-
Size(mm)
W 1,128 X L 1,310 X H 486
-
Weight(kg)
722
-
Precision(mm)
0.05 ~ 0.1

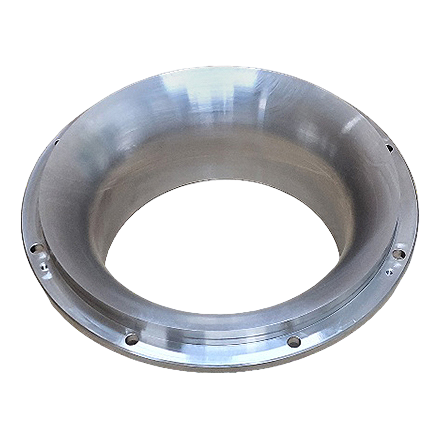

INSERT PIECE
-
Model
ETB40
-
Product Name
INSERT PIECE
-
Role of Parts
Parts that serve as passageways that maintain a certain gap
-
Application area
MAN TYPE EGR
-
Size(mm)
W 534 X L 534 X H 184
-
Weight(kg)
36
-
Precision(mm)
0.02 ~ 0.1

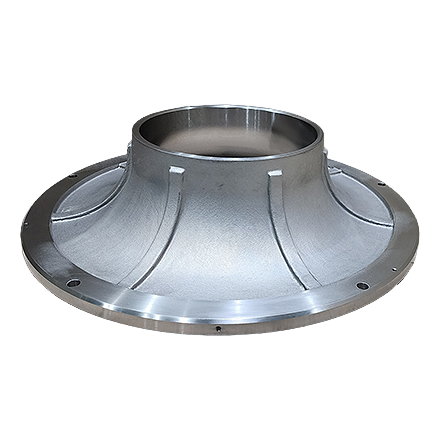

SUCTION PIPE
-
Model
ETB40
-
Product Name
SUCTION PIPE
-
Role of Parts
Parts that acts as a passageway to let in a certain flow rate
-
Application area
MAN TYPE EGR
-
Size(mm)
W 790 X L 790 X H 190
-
Weight(kg)
70
-
Precision(mm)
0.068 ~ 0.1

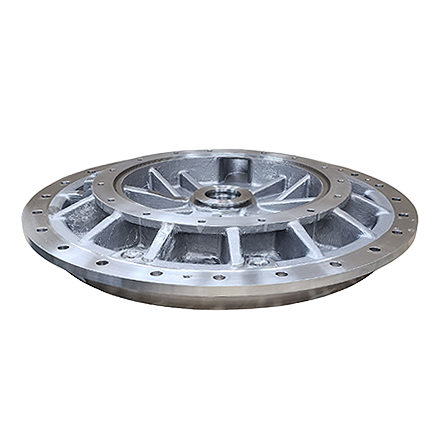

DIFFUSER
-
Model
ETB40
-
Product Name
DIFFUSER
-
Role of Parts
Parts that change the direction of flow at the outlet
-
Application area
MAN TYPE EGR
-
Size(mm)
W 978 X L 978 X H 142
-
Weight(kg)
249
-
Precision(mm)
0.015 ~ 0.2
