Compressor Parts

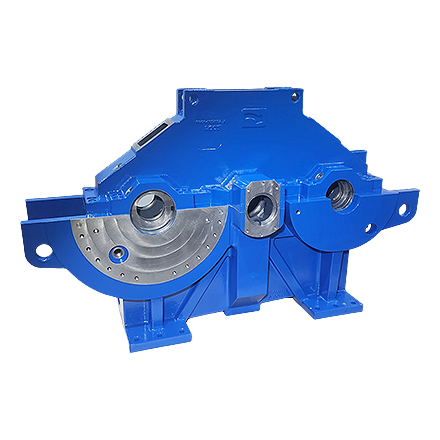

GEAR BOX
-
Model
SE-32, SE-45, SE-65, SE-82, SE-90, SE-110, SE-130
-
Product Name
GEAR BOX
-
Role of Parts
Box parts with built-in various gears to deliver the power needed to rotate the drive shaft
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 1,311 x L 503 x H 935 ~ W 3,307 x L 1,010 x H 2,248
-
Weight(kg)
857 ~ 12,156
-
Precision(mm)
0.015 ~ 0.1

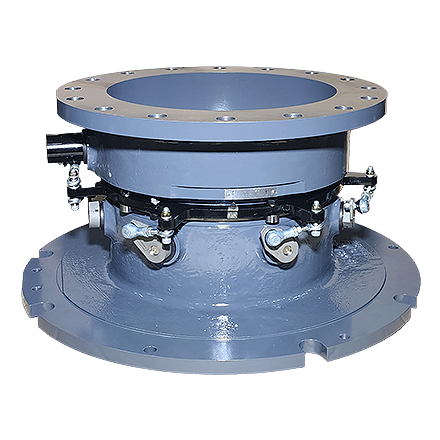

IGV CASE
-
Model
SE-32, SE-45, SE-65, SE-82, SE-90, SE-110, SE-130
-
Product Name
IGV CASE
-
Role of Parts
Parts that encourage smooth air inflow into the first part of the compressor
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 390 x L 390 x H 244 ~ W 1,300 x L 1,300 x H 1,560
-
Weight(kg)
46 ~ 5,600
-
Precision(mm)
0.018 ~ 0.2
OUTER CASE
-
Model
SE-32, SE-45, SE-65, SE-82, SE-90, SE-110, SE-130
-
Product Name
OUTER CASE
-
Role of Parts
Parts that regulate engine heat and stabilize the temperature inside the compressor
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 250 x L 250 x H 254 ~ W 2,550 x L 2,550 x H 750
-
Weight(kg)
107 ~ 6,540
-
Precision(mm)
0.018 ~ 0.2
HOUSING CASE
-
Model
SE-32, SE-45, SE-65, SE-82, SE-90, SE-110, SE-130
-
Product Name
HOUSING CASE
-
Role of Parts
Parts that are assembled on top of compressor case to prevent internal damage from external factors
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 590 x L 590 x H 250 ~ W 2,850 x L 2,850 x H 850
-
Weight(kg)
161 ~ 6,040
-
Precision(mm)
0.018 ~ 0.2

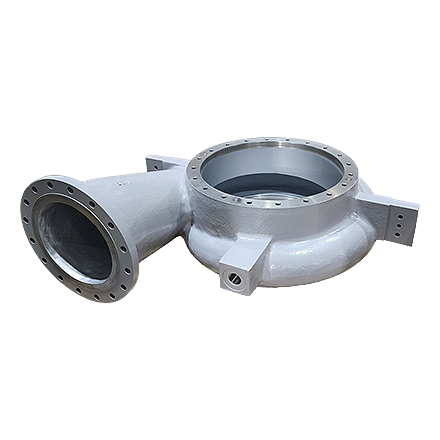

SCROLL CASE
-
Model
SE-32, SE-45, SE-65, SE-82, SE-90, SE-110, SE-130
-
Product Name
SCROLL CASE
-
Role of Parts
Parts that compress air to prevent it from leaking according to the operating principle of the compressor
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 280 x L 250 x H 180 ~ W 3,950 x L 2,560 x H 950
-
Weight(kg)
146 ~ 12,100
-
Precision(mm)
0.02 ~ 0.25
SHROUD CASE
-
Model
SE-32, SE-45, SE-65, SE-82, SE-90, SE-110, SE-130
-
Product Name
SHROUD CASE
-
Role of Parts
Parts that acts as a conduit that introduces a certain amount of incoming air into the interior
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 230 x L 230 x H 150 ~ W 2,850 x L 2,850 x H 850
-
Weight(kg)
65 ~ 8,540
-
Precision(mm)
0.02 ~ 0.25
