Compressor Parts

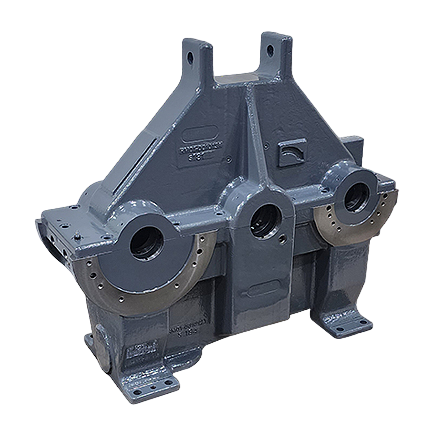

GEAR BOX
-
Model
SM3000, SM3100, SM4000, SM4100, SM5000, SM5100, SM6100, SM7100
-
Product Name
GEAR BOX
-
Role of Parts
Box parts with built-in various gears to deliver the power needed to rotate the drive shaft
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 1,311 x L 504 x H 935 ~ W 1,845 x L 750 x H 1,500
-
Weight(kg)
875 ~ 2,851
-
Precision(mm)
0.015 ~ 0.1

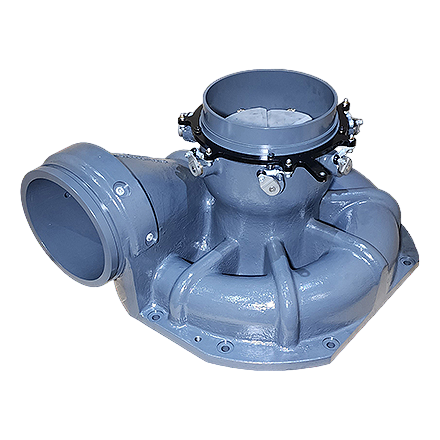

IGV CASE
-
Model
SM5000, SM5100, SM6000, SM6100, SM7100
-
Product Name
IGV CASE
-
Role of Parts
Parts that encourage smooth air inflow into the first part of the compressor
-
Application area
AApplies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 250 x L 250 x H 254 ~ W 880 x L 880 x H 383
-
Weight(kg)
142 ~ 413
-
Precision(mm)
0.018 ~ 0.2

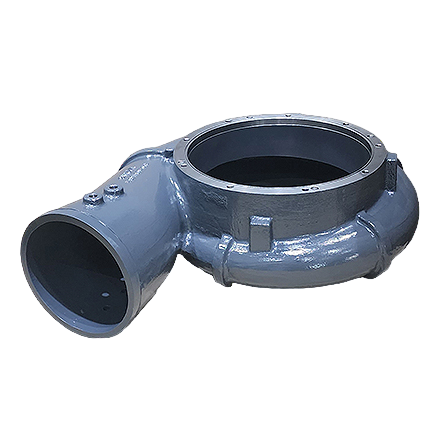

SCROLL CASE
-
Model
SM5000, SM5100, SM6000, SM6100, SM7100
-
Product Name
SCROLL CASE
-
Role of Parts
Parts that compress air to prevent it from leaking according to the operating principle of the compressor
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 562 x L 534 x H 231 ~ W 1,600 x L 1,200 x H 388
-
Weight(kg)
92 ~ 924
-
Precision(mm)
00.02 ~ 0.25

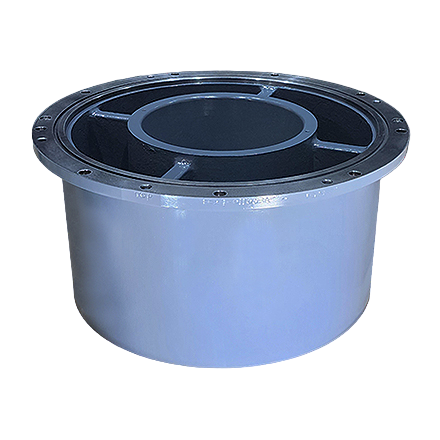

SHROUD CASE
-
Model
SM5100, SM6100, SM7100
-
Product Name
SHROUD CASE
-
Role of Parts
Parts that acts as a conduit that introduces a certain amount of incoming air into the interior
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 384 x L 384 x H 251 ~ W 880 x L 880 x H 366
-
Weight(kg)
71 ~ 507
-
Precision(mm)
0.02 ~ 0.25

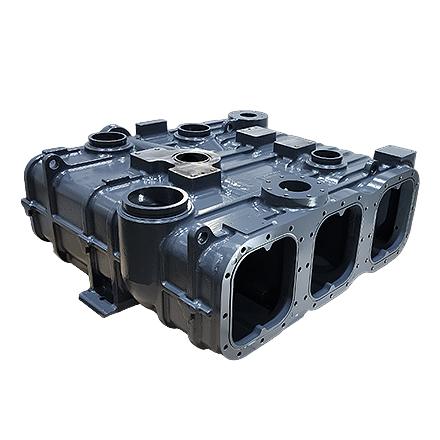

COOLER CASE
-
Model
SM3000, SM3100, SM4000, SM4100, SM5000, SM5100, SM6000, SM6100, SM7100
-
Product Name
COOLER CASE
-
Role of Parts
Cooling device that uses air or water to prevent overheating
-
Application area
Applies to industrial compressors for AIR, GAS, STEAM
-
Size(mm)
W 1,289 x L 1,035 x H 530 ~ W 2,522 x H 1,720 x L 800
-
Weight(kg)
1,420 ~ 4,045
-
Precision(mm)
0.02 ~ 0.25
