Ship Engine Parts

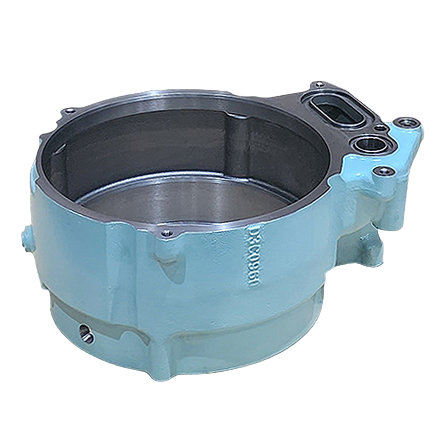

WATER JACKET
-
Model
L21/31 , L27/38
-
Product Name
WATER JACKET
-
Role of Parts
Parts that circulates the coolant to keep the cylinder at an appropriate temperature
-
Application area
MAN ENGINE
-
Size(mm)
W 482 x L 278 x H 246 ~ W 866 x L 487 x H 365
-
Weight(kg)
90~100
-
Precision(mm)
0.02~0.3

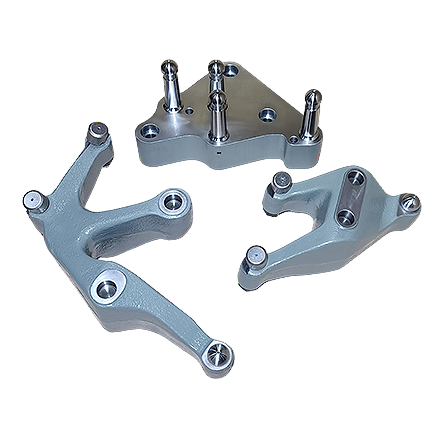

ROCKER ARM ASS'Y
-
Model
L32/40
-
Product Name
ROCKER ARM ASS'Y
-
Role of Parts
Parts installed on the engine cylinder head to operate the intake, exhaust, and injection valves
-
Application area
MAN ENGINE
-
Size(mm)
W 250 x L 400 x H 150 ~ W 280 x L 280 x H 180
-
Weight(kg)
9~44
-
Precision(mm)
0.05~0.1

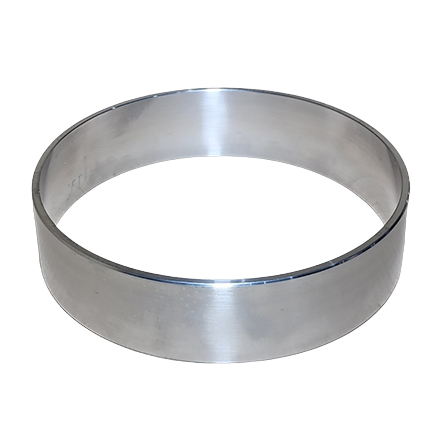

FLAME RING
-
Model
L16/24 , L21/31 , L23/30 , L27/38
-
Product Name
FLAME RING
-
Role of Parts
Parts that protect the engine cylinder with parts that are assembled inside the engine cylinder
-
Application area
MAN ENGINE
-
Size(mm)
W 170 x L 170 x H 20 ~ W 280 x L 280 x H 35
-
Weight(kg)
0.1~2.7
-
Precision(mm)
0.015 ~ 0.05

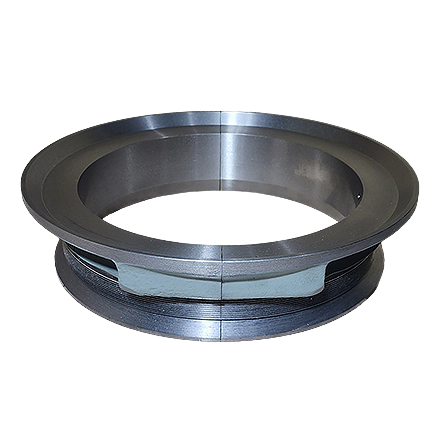

SPLASH RING ASSEMBLY
-
Model
L32/40
-
Product Name
SPLASH RING ASSEMBLY
-
Role of Parts
Parts attached to the end of the crankshaft to prevent oil leakage
-
Application area
MAN ENGINE
-
Size(mm)
W 394 x L 394 x H 93
-
Weight(kg)
39~41
-
Precision(mm)
0.022~0.5

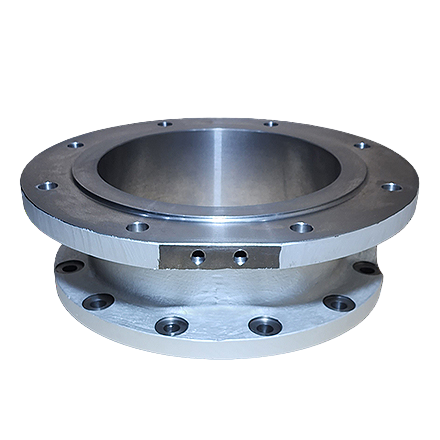

INTERMEDIATE PIPE
-
Model
L32/40
-
Product Name
INTERMEDIATE PIPE
-
Role of Parts
Piping parts for attaching piping sensors
-
Application area
MAN ENGINE
-
Size(mm)
W 480 x L 480 x H 150
-
Weight(kg)
43~47
-
Precision(mm)
0.05~0.3
