Ship Engine Parts

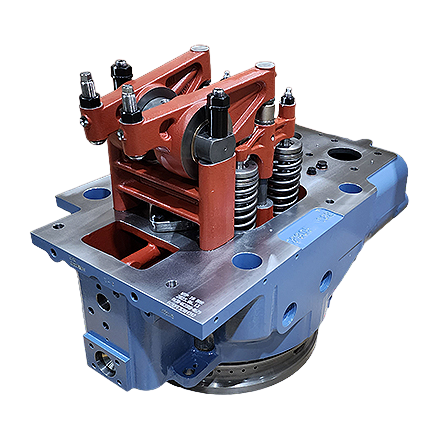

CYLINDER HEAD COMPLETE
-
Model
H17/28, H21/32, H21M, H25/33, H32/40, H35DF
-
Product Name
CYLINDER HEAD COMPLETE
-
Role of Parts
Parts with a valve mechanism that forms a combustion chamber with a cylinder and opens and closes the intake and exhaust passages
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 482 x L 278 x H 417 ~ W 866 x L 487 x H 705
-
Weight(kg)
86 ~ 381
-
Precision(mm)
0.018 ~ 0.1

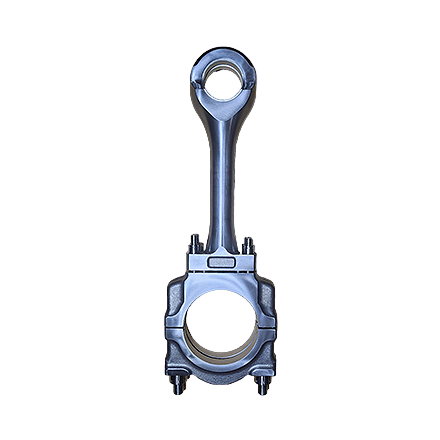

CONROD ASSEMBLY
-
Model
H17/28, H21C, H21/32, H21M, H22CDF, H25/33, H27DF, H32/40, H35DF, H46/60, H54DF
-
Product Name
CONROD ASSEMBLY
-
Role of Parts
Parts that convert the reciprocating motion of the piston into rotational motion of the crankshaft
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 290 x L 796 x H 62 ~ W 514 x L 1,262 x H125
-
Weight(kg)
44 ~ 215
-
Precision(mm)
0.02 ~ 0.01
