Ship Engine Parts

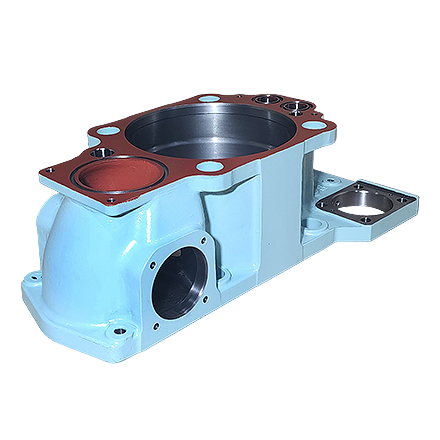

WATER JACKET
-
Model
H17/28, H21/32, H21M, H22CDF, H25/33, H27DF, H32/40, H35DF, H46/60
-
Product Name
WATER JACKET
-
Role of Parts
Parts that circulates the coolant to keep the cylinder at an appropriate temperature
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 743 x L 369 x H 227 ~ W 777 x L 778 x H 151
-
Weight(kg)
62 ~ 118
-
Precision(mm)
0.02 ~ 0.3

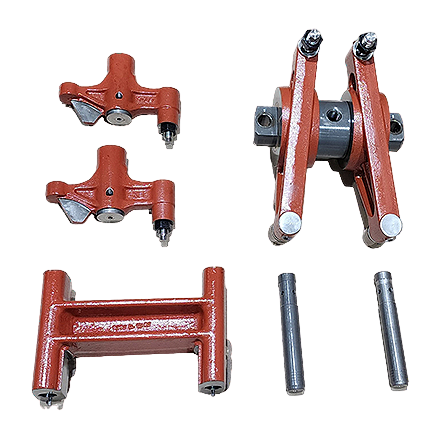

ROCKER ARM ASSEMBLY
-
Model
H17/28, H21C, H21/32, H21M, H22CDF, H25/33, H27DF, H32/40, H35DF, H35/40G, H46/60, H54DF
-
Product Name
ROCKER ARM ASSEMBLY
-
Role of Parts
Parts that change the direction of power when power is transmitted to the intake and exhaust valves
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 156 x L 134 x H 70 ~ W 485 x L 147 x H 280
-
Weight(kg)
38 ~ 55
-
Precision(mm)
0.05 ~ 0.1

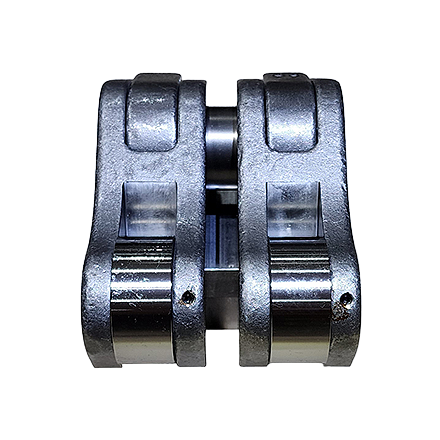

SWING ARM ASSEMBLY
-
Model
H17/28, H21C, H21/32, H21M, H25/33, H27DF, H32/40, H35DF
-
Product Name
SWING ARM ASSEMBLY
-
Role of Parts
Parts that transmit rotational motion of the CAM to vertical motion
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 193 x L 200 x H 76 ~ W 287 x L 302 x H 132
-
Weight(kg)
7.8 ~ 17.1
-
Precision(mm)
0.01 ~ 0.05

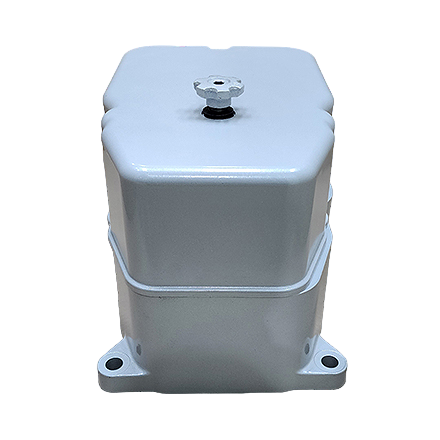

CYLINDER HEAD COVER
-
Model
H17/28, H21/32, H21M, H22CDF, H25/33, H32/40, H35DF
-
Product Name
CYLINDER HEAD COVER
-
Role of Parts
arts that cover over the CYLINDER HEAD
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 192 x L 300 x H 140 ~ W 380 x L 500 x H 312
-
Weight(kg)
3.39 ~ 11.63
-
Precision(mm)
0.1 ~ 0.3

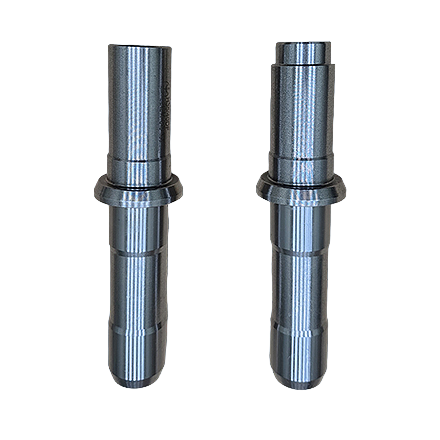

VALVE GUIDE
-
Model
H17/28, H21C, H21/32, H21M, H22CDF, H25/33, H32/40, H35DF, H35/40G
-
Product Name
VALVE GUIDE
-
Role of Parts
Parts that serves as the guide surface of the valve shaft and also transfers heat from the valve to the cylinder to dissipate heat
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 30 x L 30 x H 120~ W 56 x L 56 x H 215
-
Weight(kg)
0.21 ~ 1.21
-
Precision(mm)
0.015 ~ 0.018

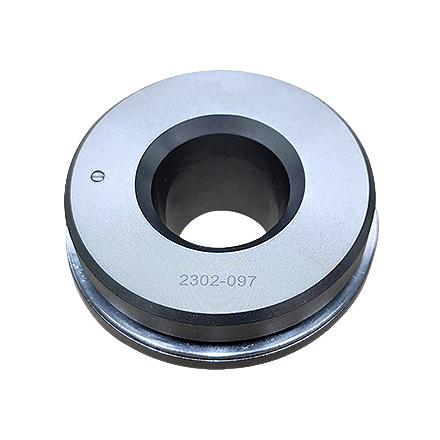

ROTO CAP
-
Model
H17/28, H21C, H21/32, H21M, H22CDF, H25/33, H32/40, H35DF, H35/40G
-
Product Name
ROTO CAP
-
Role of Parts
Parts that minimize uneven wear of valves when the engine is running
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 50 x L 50 x H 25 ~ W 81 x L 81 x H 35
-
Weight(kg)
0.25 ~ 0.65
-
Precision(mm)
0.06 ~ 0.2
