Ship Engine Parts

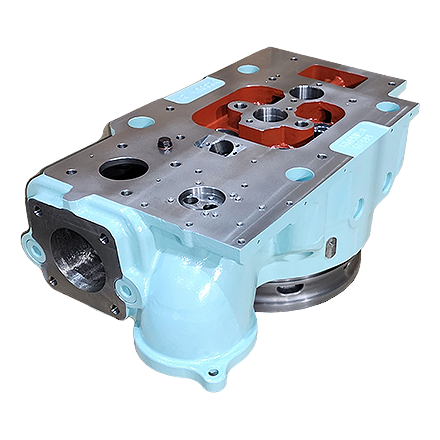

CYLINDER HEAD
-
Model
H17/28
-
Product Name
CYLINDER HEAD
-
Role of Parts
Parts with a valve mechanism that forms a combustion chamber with a cylinder and opens and closes the intake and exhaust passages
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 482 x L 278 x H246 ~ W 866 x L 487 x H 365
-
Weight(kg)
79 ~ 350
-
Precision(mm)
0.018 ~ 0.1

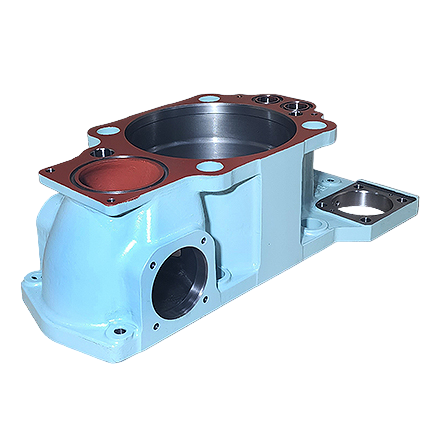

WATER JACKET
-
Model
H17/28, H21/32, H21M, H25/33, H32/40, H35DF, H46/60
-
Product Name
WATER JACKET
-
Role of Parts
Parts that circulates the coolant to keep the cylinder at an appropriate temperature
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 743 x L 369 x H 227 ~ W 777 x L 778 x H 151
-
Weight(kg)
62 ~ 118
-
Precision(mm)
0.02 ~ 0.3

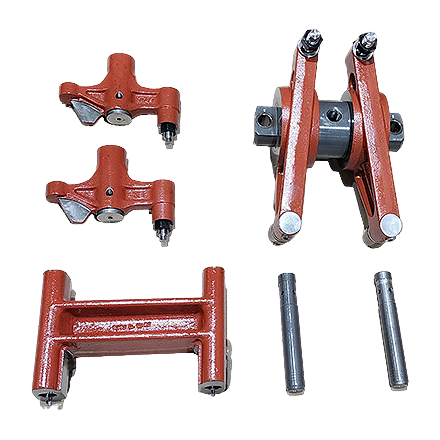

ROCKER ARM ASSEMBLY
-
Model
H17/28, H21/32, H21M, H25/33, H32/40, H35DF
-
Product Name
ROCKER ARM ASSEMBLY
-
Role of Parts
Parts that change the direction of power when power is transmitted to the intake and exhaust valves
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 300 x L 400 x H 150 ~ W 380 x L 550 x H 280
-
Weight(kg)
38 ~ 55
-
Precision(mm)
0.05 ~ 0.1

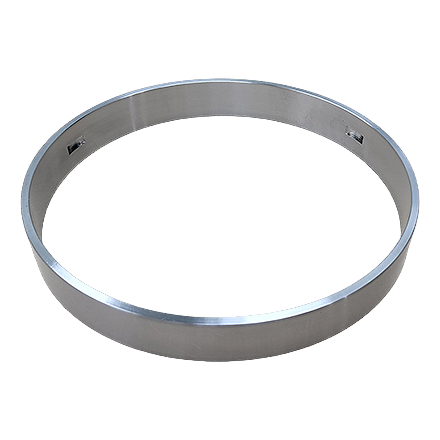

FLAME RING
-
Model
H17/28, H21/32, H21M, H25/33, H32/40, H35DF
-
Product Name
FLAME RING
-
Role of Parts
엔진 실린더 내부에 조립되는 부품으로 엔진 실린더를 보호하는 부품
-
Application area
HIMSEN ENGINE
-
Size(mm)
W 170 x L 170 x H 20 ~ W 540 x L 540 x H 60
-
Weight(kg)
0.1~0.5
-
Precision(mm)
0.015 ~ 0.05
